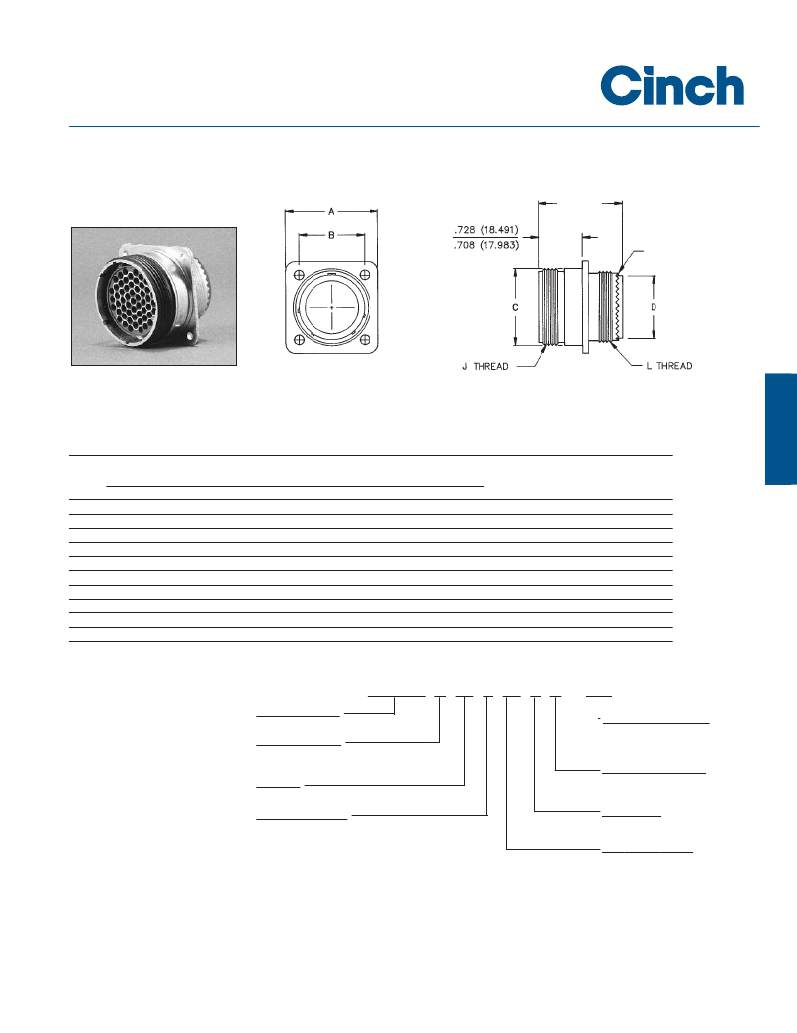

CN0967 (C48 Series)
Vibration-Resistant Receptacle
Threaded Coupling
CN0967XXXXXXXX
BACC63BV 1
1.407**
(35.738)
Max.
360° LOCKING
ACCESSORY
TEETH
Dimensions
A
B
C
D
J
L
3
Shell
Size
8
10
12
14
16
18
20
22
24
28
+.0045 (.114)
in mm
.812 20.625
.937 23.800
1.031 26.187
1.125 28.575
1.250 31.750
1.343 34.112
1.437 36.500
1.562 39.675
1.703 43.256
2.000 50.800
+.005 (.127)
in mm
.594 15.088
.719 18.263
.812 20.625
.906 23.012
.969 24.613
1.062 26.975
1.156 29.362
1.250 31.750
1.375 34.925
1.562 39.675
Max.
in mm
.561 14.250
.696 14.250
.875 17.679
.935 22.225
1.062 23.749
1.187 30.150
1.312 33.325
1.437 36.500
1.562 39.675
1.810 45.976
Max. Dia.
in mm
.328 8.331
.371 9.423
.547 13.894
.609 15.469
.758 19.253
.865 21.971
.986 25.044
1.106 28.092
1.235 31.369
1.485 37.719
Thread
UNEF-2A
.5265-24
.6875-24
.8750-20
.9375-20
1.0625-18
1.1875-18
1.3125-18
1.4375-18
1.5625-18
1.8125-16
Thread
UNEF-2A
.5000-20
.6250-24
.7500-20
.8750-20
1.0000-20
1.0625-18
1.1875-18
1.3125-18
1.4375-18
1.750-18*
Ordering Information 2
Series Designation
CN0967
Series Modification
C - Square-Flange Mount
CN0967 C 10 S 05 P N - 000
Order Code (Deviations)
000 - Less Contacts
100 - * See below
200 - With Gold-Plated Contacts
NOTES:
G - Square-Flange with Clinch Nuts
Shell Size
8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28
Environmental Class
A - Anodized Aluminum
G - Cadmium/Nickel-Plated Aluminum
K - Stainless Steel, Flame Resistant
N - Electroless Nickel-Plated Aluminum
S - Stainless Steel
Alternate Shell Position
N, 6, 7, 8, 9, 10
Per table on page 3-4.
Contact Style
P - Pin
S - Socket
Inser t Arrangements
(See page 3-4)
1
2
For Boeing Specification, see page 3-14.
For modifications, classes, etc., not listed, consult factory.
? For mounting hole dimensions, see page 3-20.
* Th’d: UNS-2A
**Size 28 = 1.457 (37.008)
* Former order code - 100 designated rhodium plated contacts
3-16
Call Toll Free: 1 (800) 323-9612
